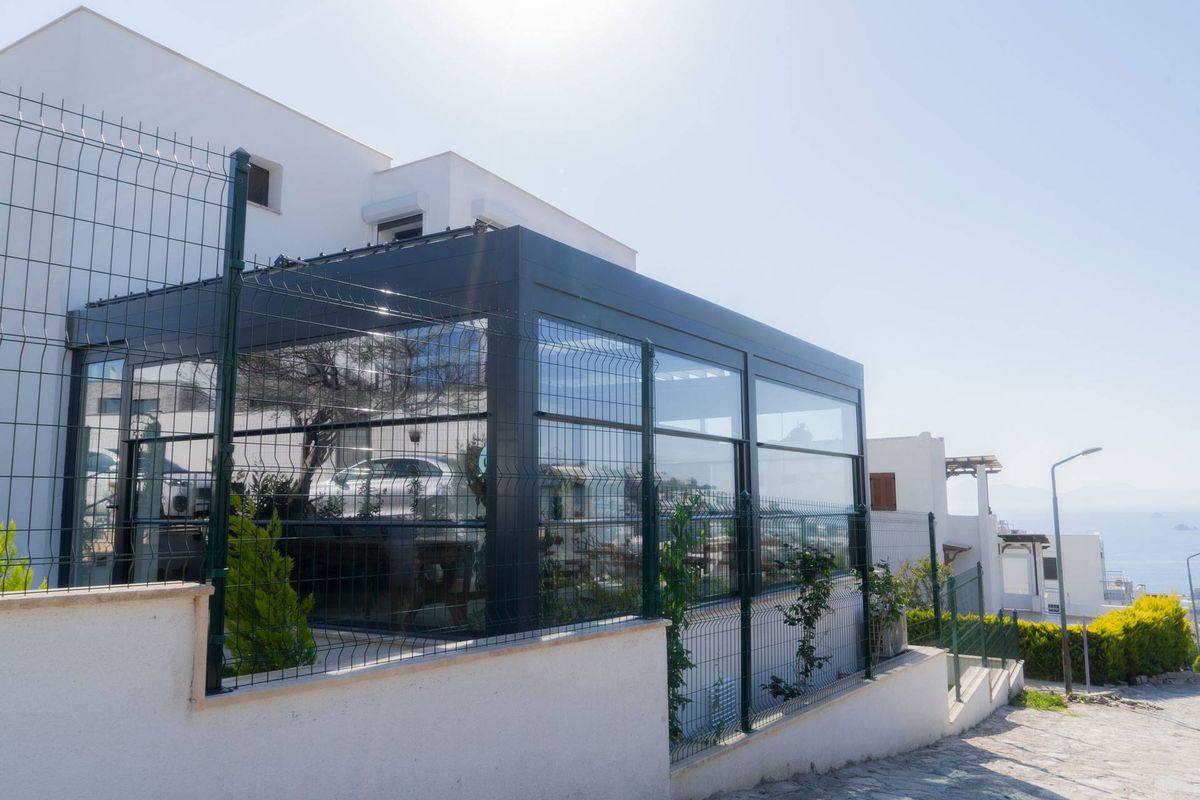

Cleanable Guillotine System
Apollon Plus
Apollon Plus
Every pane reachable from the inside — patent-protected profile design.
View systemSupported Guillotine System

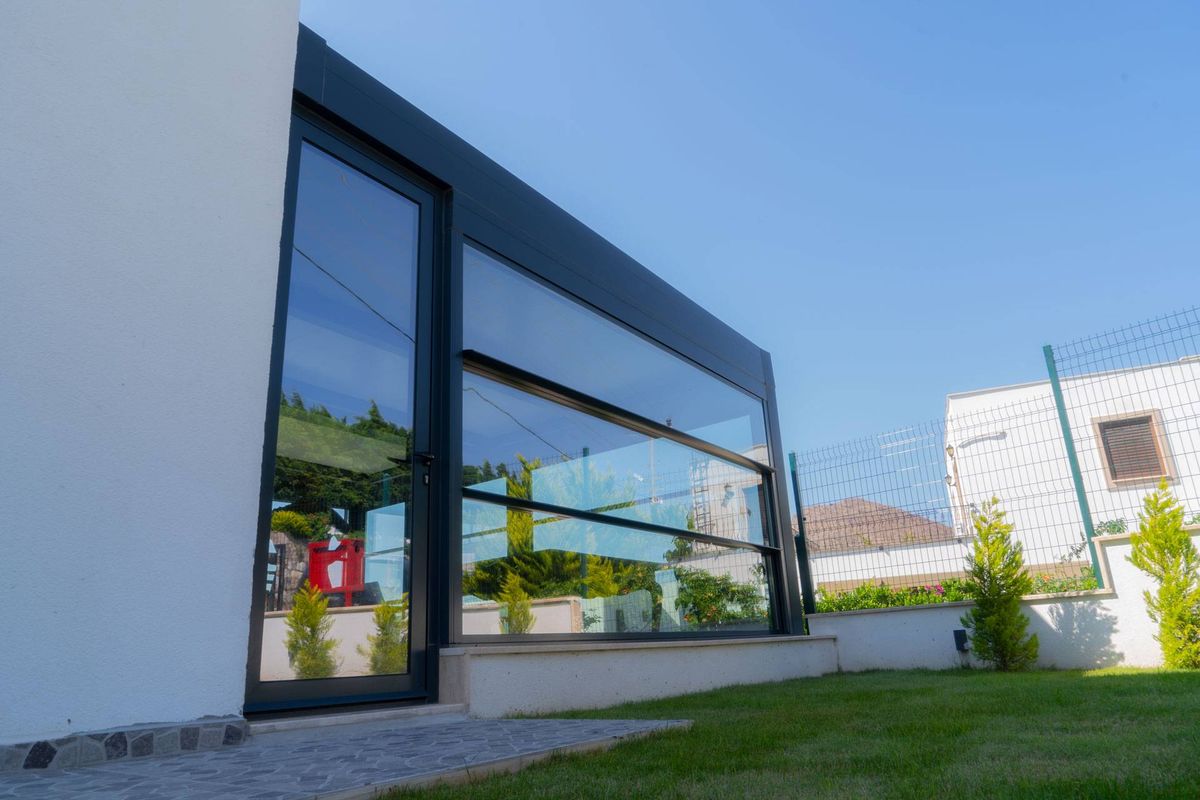

Apollon
Glass that disappears vertically — self-locking, supported, silent.
Overview
The Apollon Supported Guillotine System is an elegant solution ideal for restaurants, cafés, hotels and patisseries. Designed for modern spaces, this system features horizontally moving glass panels that operate smoothly and quietly using a motorised mechanism, controllable via buttons or remote control. It uses 4+16+4 mm tempered glass, customisable upon request. The aluminium frame with bristle seals provides excellent insulation, while durable belts or optional chains ensure reliable operation.
Features & benefits
What it does differently.
Versatile Applications
Restaurants, cafés, hotels and patisseries.
Motorised Operation
Easy control with buttons or remote control.
Customisable Glass
4+16+4 mm tempered glass, with options for different thicknesses.
Effective Insulation
Aluminium frame with 67 × 1200 mm bristle seals for sound, heat and water insulation.
Durable Mechanism
20 mm × 25 mm rope-reinforced belts for smooth, quiet movement, with an optional chain alternative.
Safety & Security
Locks automatically when closed — no additional locks required.
User-Friendly Design
Glass panels can be stopped at any position for controlled ventilation.
Structural Integrity
Supported profiles prevent bending and wobbling.
Technical specification
The numbers.
Dimensions are the maximum for a single module. Larger openings are delivered as coupled modules — tell us the span and we will draw the split.
Request this system| Base cavity | Total internal cavity 24 mm; customisable glass thickness |
|---|---|
| Aluminium thickness | 2 mm for enhanced durability |
| Glass options | 2 or 3 glass panels |
| Movement mechanism | Durable chains or 20 × 25 mm rope-reinforced belts |
| Steel rollers | 8 stainless steel rollers per wing |
| Motor options | LCF, BECKER, CUPON or SOMFY |
| Dimensions | Maximum width 5500 mm × height 2200 mm, customisable |
| Central control | A single remote can operate up to 20 systems |
| Maintenance | Side channels allow easy repair without system disassembly |

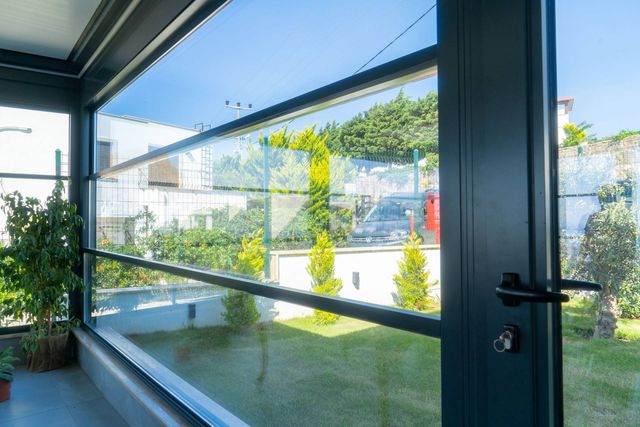

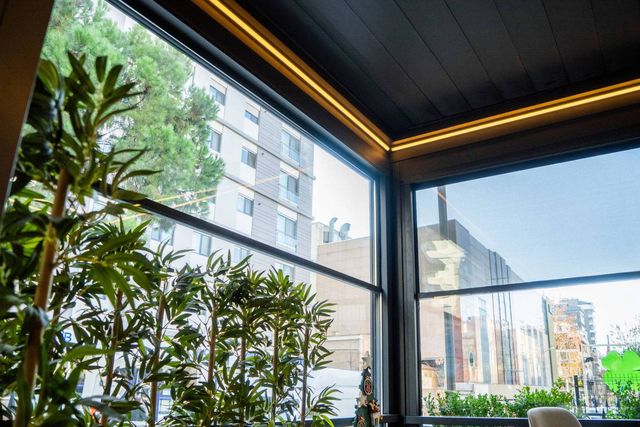

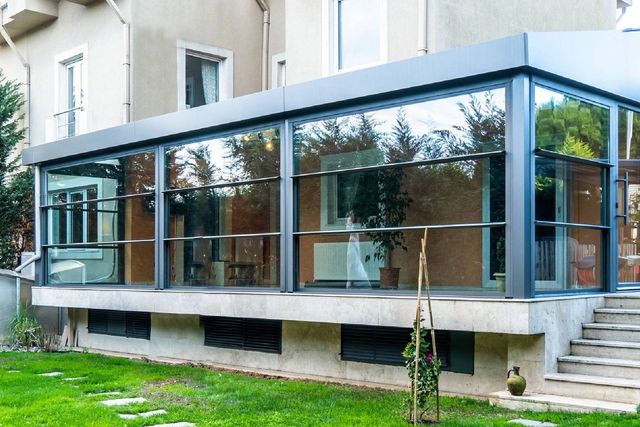

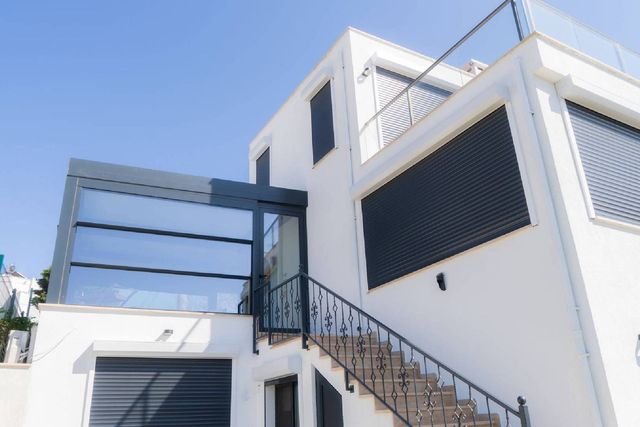

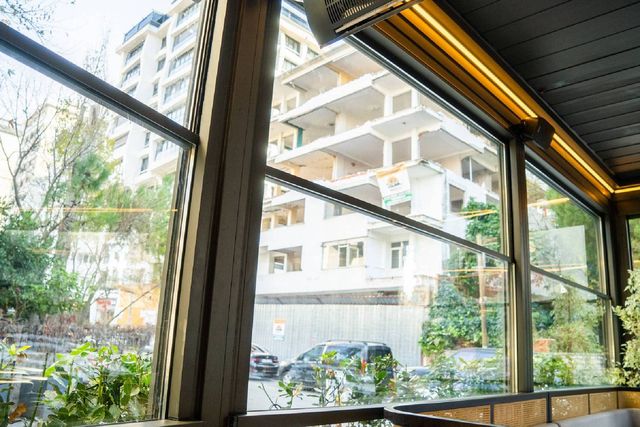

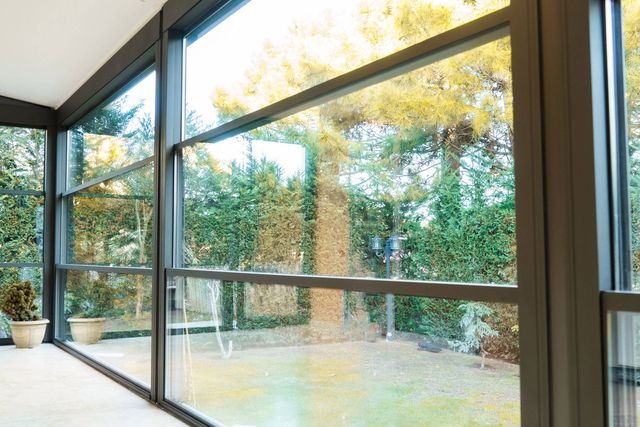

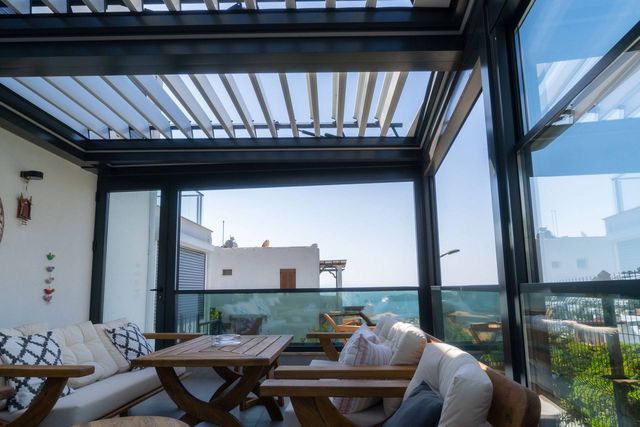

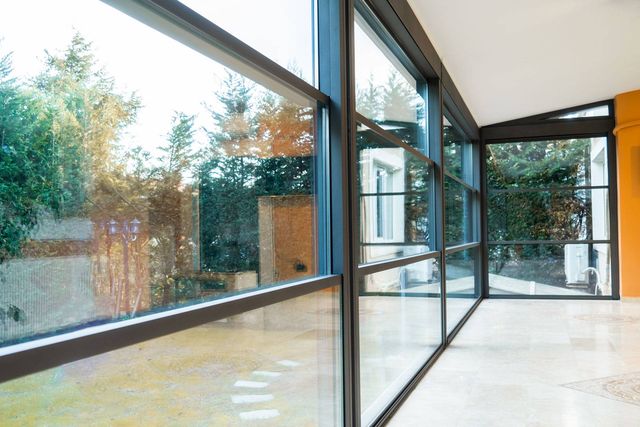

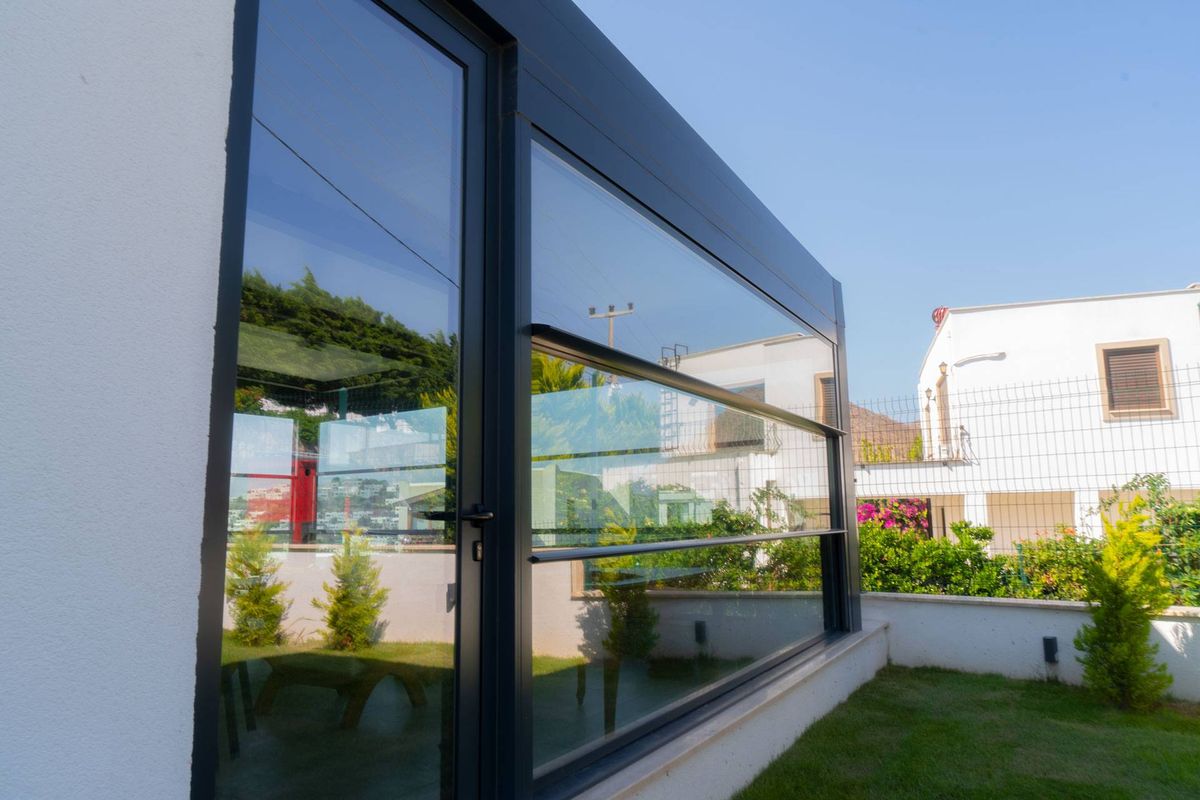

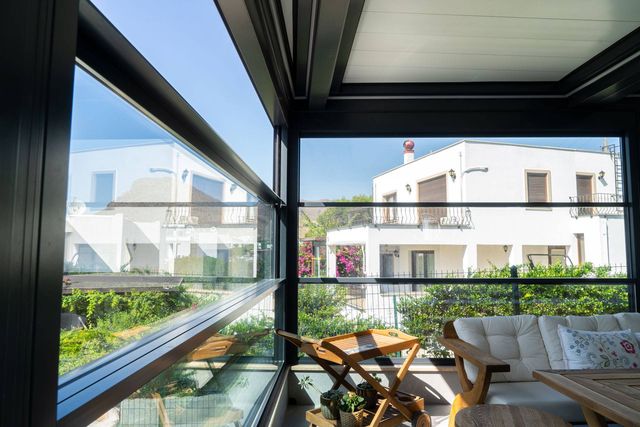

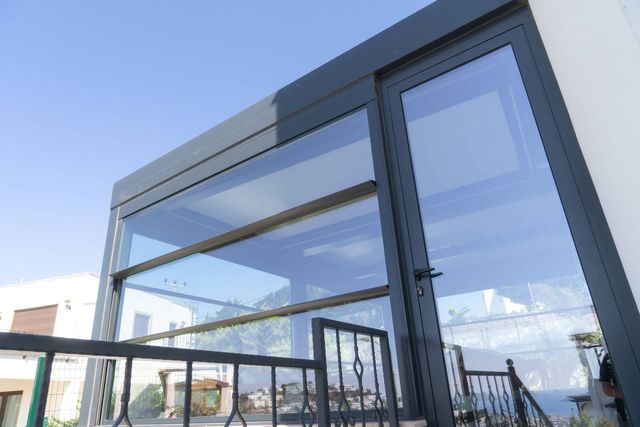

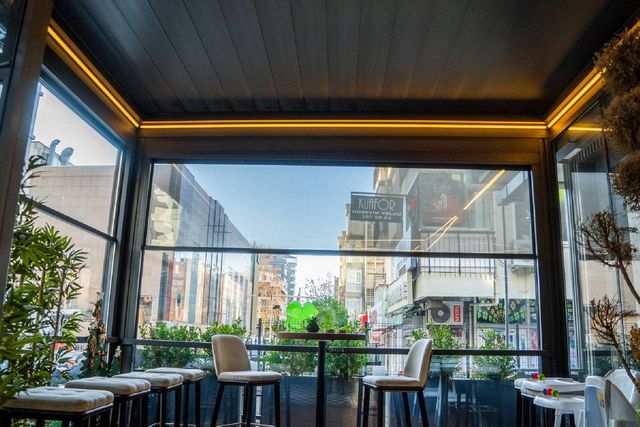

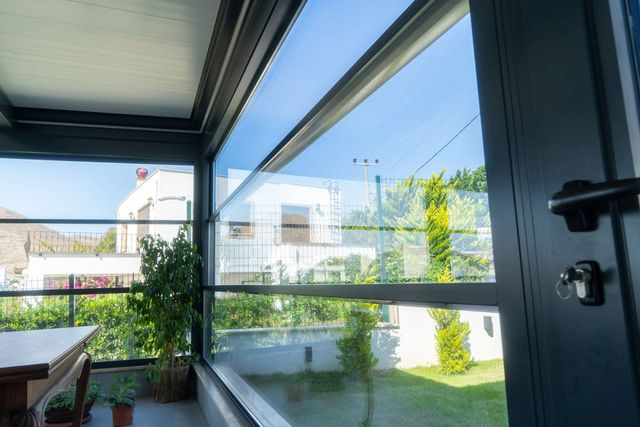

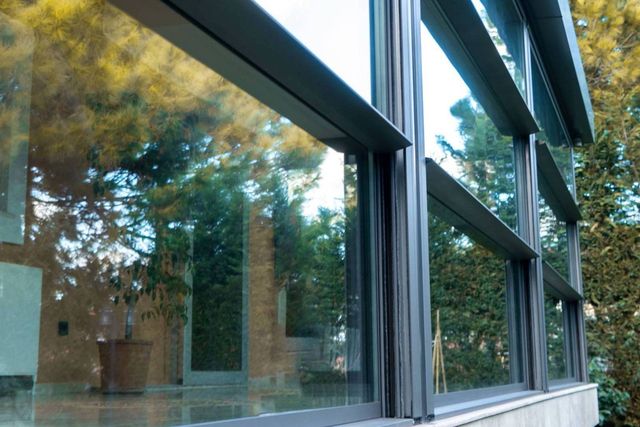

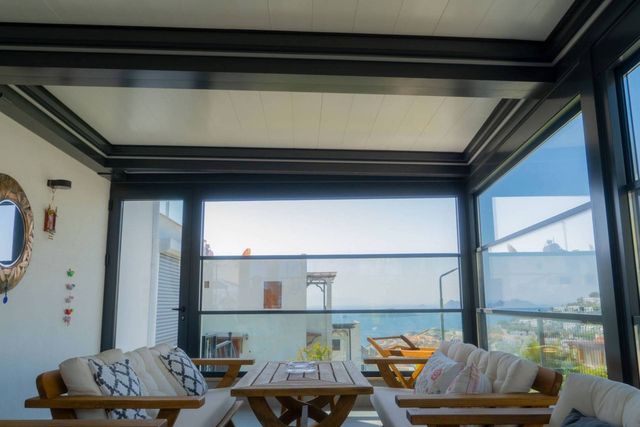

Installed
Apollon in place.
Related
Systems often specified alongside.

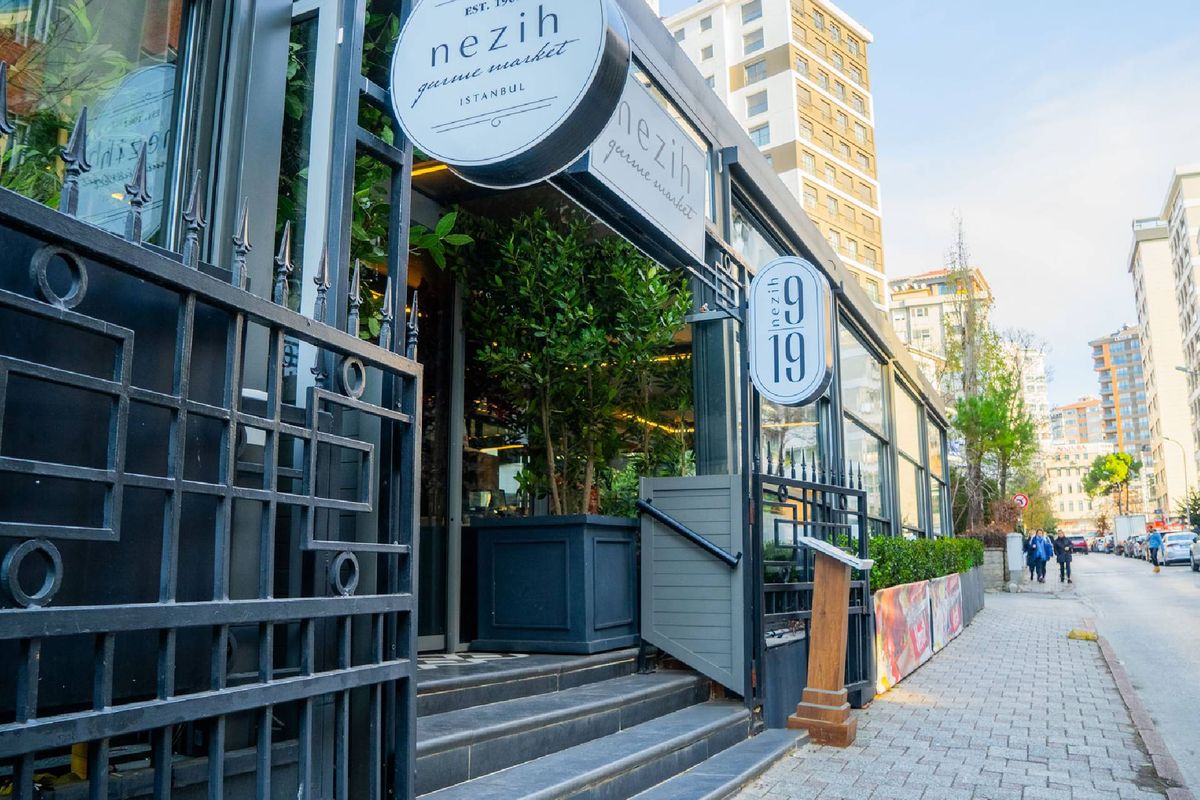

Standard Guillotine System
