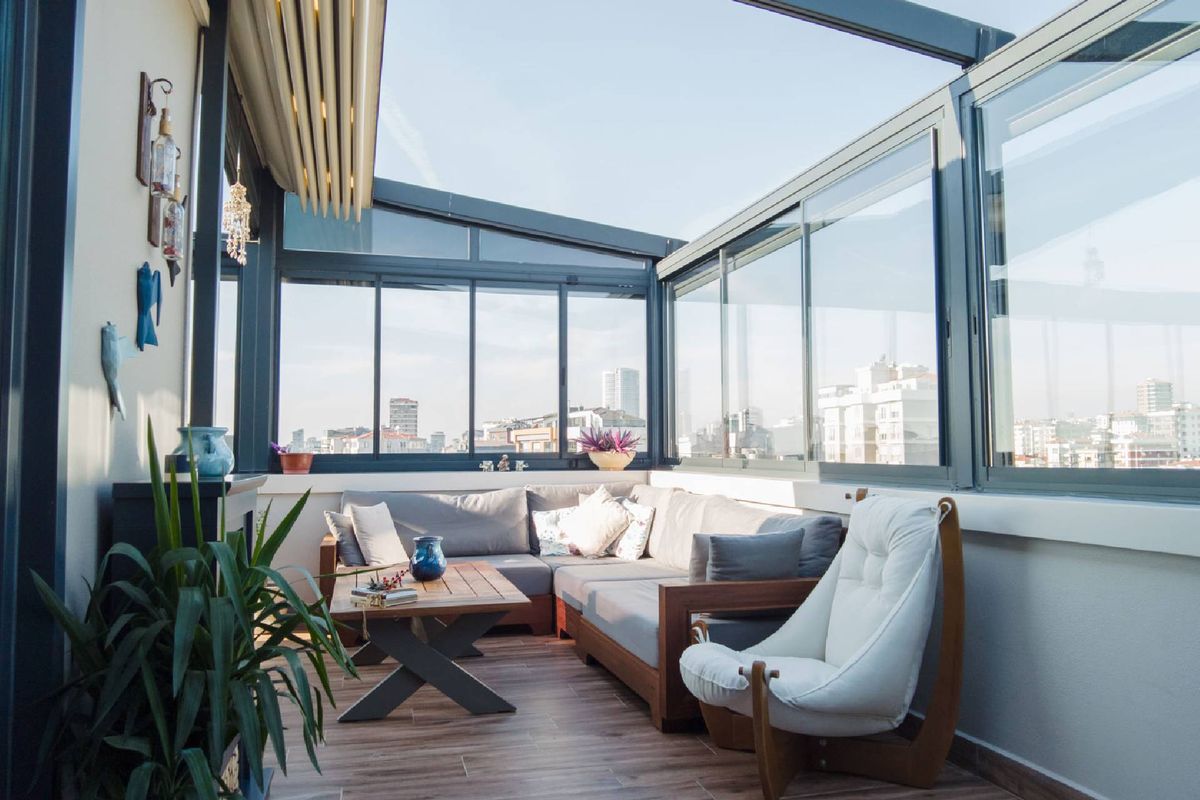

Olympos Pergola 170
Built for wide spans — winter gardens, hotels, restaurants and public squares.
Overview
The Olympos Pergola 170 system is crafted for extensive outdoor use, ideal for winter gardens, hotels, restaurants, squares and patisseries. Constructed from high-grade aluminium, it withstands harsh weather without rusting, cracking or malfunctioning. This pergola features integrated LED lights controlled remotely, with lights discreetly hidden within the aluminium profiles for a sleek, modern aesthetic.
Features & benefits
What it does differently.
Versatile Applications
Suitable for larger outdoor areas while maintaining architectural integrity.
Robust Construction
Aluminium profiles prevent rust, cracks and operational issues.
Remote Control
Both the system and the LED lights are operated via remote control.
Concealed LED Lights
Embedded within the aluminium profiles for a seamless look.
Weather Resistance
Engineered to endure all weather conditions, including heavy snow and strong winds.
Dynamic Operation
Provides adjustable sunlight exposure through retractable panels.
Blackout Fabric
Triple-layered, fire-resistant, UV-resistant fabric.
Maintenance-Free
Inox stainless steel bolts and components for reliable, low-maintenance operation.
Technical specification
The numbers.
Dimensions are the maximum for a single module. Larger openings are delivered as coupled modules — tell us the span and we will draw the split.
Request this system| Fabric | PVC-based triple-layered blackout fabric, 850 g/m²; stable between −30 °C and +70 °C; waterproof, rot-proof, light-blocking, flame-retardant |
|---|---|
| Wind resistance | Beaufort scale 6; snow load 15 cm |
| Motor | Remote-controlled RTS technology with integrated antenna for operation through concrete walls |
| Frame | 6060 hydr Norway-origin thermal aluminium; 90×170×3 mm honeycomb-structured main profiles |
| Water drainage | Front beam profiles 150×150×2.5 mm |
| Support legs | 130×90×2.5 mm aluminium profiles |
| Movement system | T10 timing belt for smooth, reliable operation |
| Sealing | Water and windproof seals between aluminium and fabric surfaces |
| Lighting | Hidden LED lights with adjustable brightness via dimmer |
| Warranty | 2 years on the mechanism, remote-controlled motor and blackout fabric |

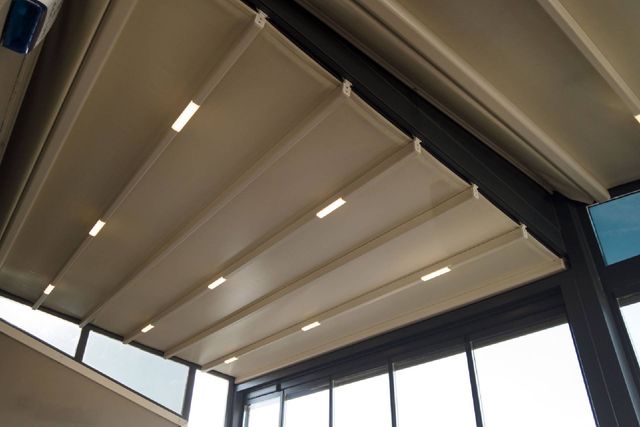

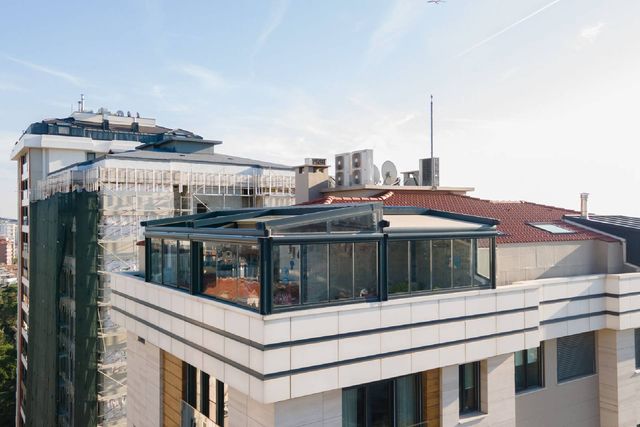

Installed

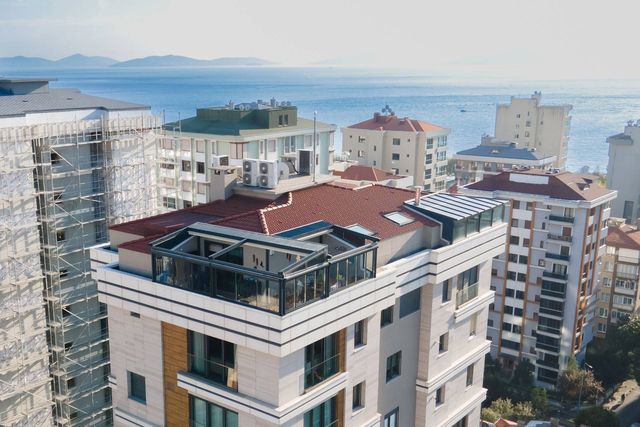

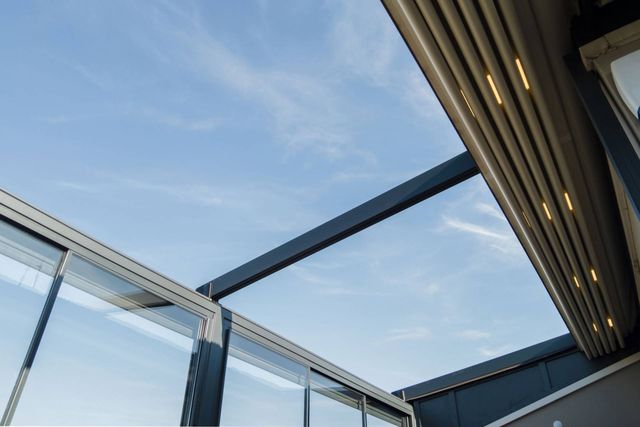

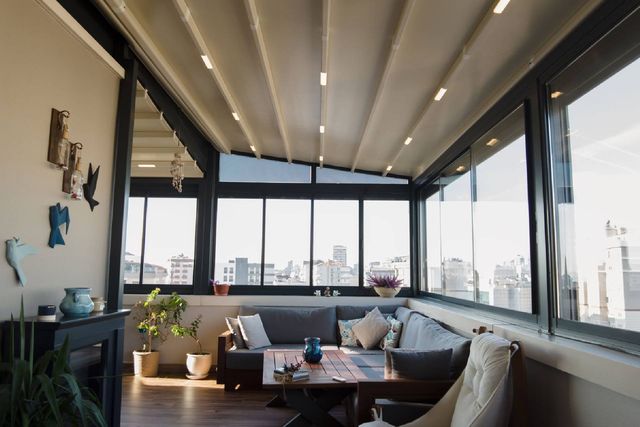

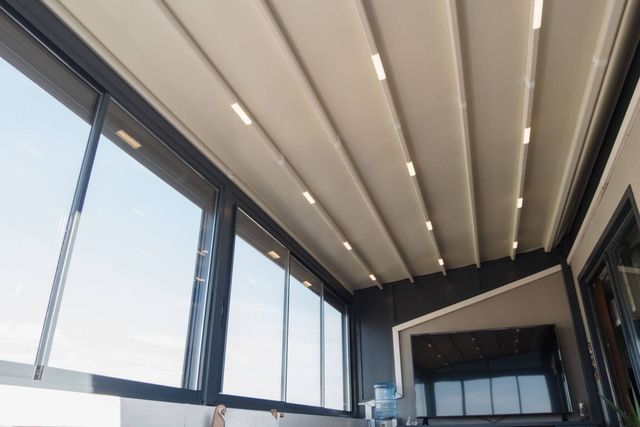

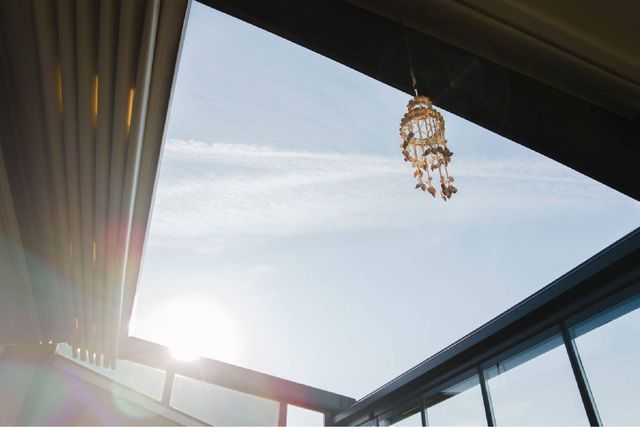

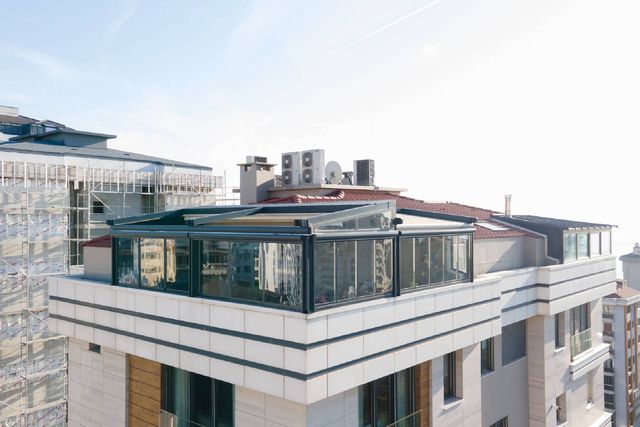

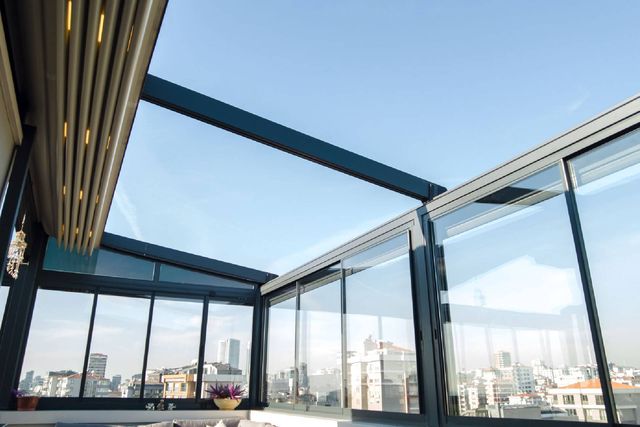

Olympos Pergola 170 in place.
