Supported Guillotine System
Apollon
Apollon
Glass that disappears vertically — self-locking, supported, silent.
View systemCleanable Guillotine System
Apollon Plus
Every pane reachable from the inside — patent-protected profile design.
Overview
The Apollon Plus Cleanable Guillotine System offers an innovative and stylish solution for hotels, homes, stores, restaurants, patisseries, winter gardens and terraces. Designed to transform enclosed spaces into open areas at the touch of a button, this system features vertically moving glass panels. Available in both insulated and single glass options, the system can be customised with 2, 3 or 4 panels, with the fixed panel optionally equipped with a ventilator for high places and balconies.
Features & benefits
What it does differently.
Versatile Applications
Transforms a wide range of spaces to suit your needs.
Motorised Operation
Operates smoothly and quietly, controlled by buttons or remote.
Customisable Configuration
2, 3 or 4 glass panels; one fixed panel that can carry a ventilator.
Flexible Positioning
Movable panels stop at any position; the system collects at the top or bottom.
Weatherproof
Completely sealed against water and air when closed.
Quiet Operation
Specially designed belts and gears — ideal for noise-sensitive areas.
Easy Maintenance
The motor is housed in an aluminium profile box for access without removing the system.
Patent-Protected Design
Profile design and patent certified by TPE.
Technical specification
The numbers.
Dimensions are the maximum for a single module. Larger openings are delivered as coupled modules — tell us the span and we will draw the split.
Request this system| Base cavity | 24 mm internal cavity, with optional glass thickness variations |
|---|---|
| Aluminium thickness | 2 mm |
| Glass | 4+16+4 mm and 4+4 mm, or 6+12+6 mm tempered insulated glass |
| Glass options | 2 or 3 glass panels as required |
| Movement mechanism | Durable chains or 20 × 25 mm rope-reinforced belts |
| Steel rollers | 8 stainless steel rollers per wing |
| Motor options | LCF, BECKER, CUPON or SOMFY |
| Dimensions | Maximum width 5500 mm × height 3000 mm, customisable |
| Central control | A single remote can operate up to 20 systems simultaneously |
| Self-locking | Locks automatically when closed, preventing unauthorised access |

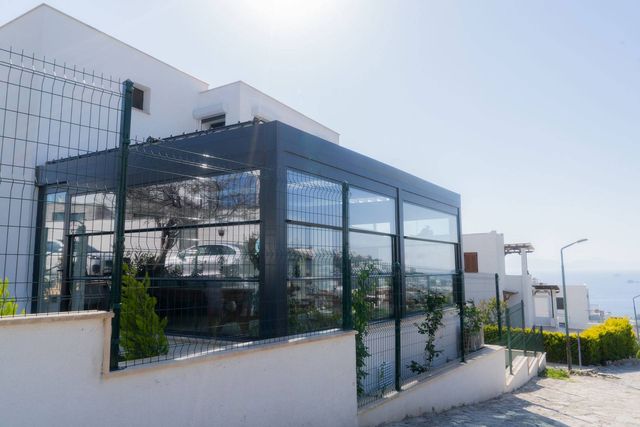

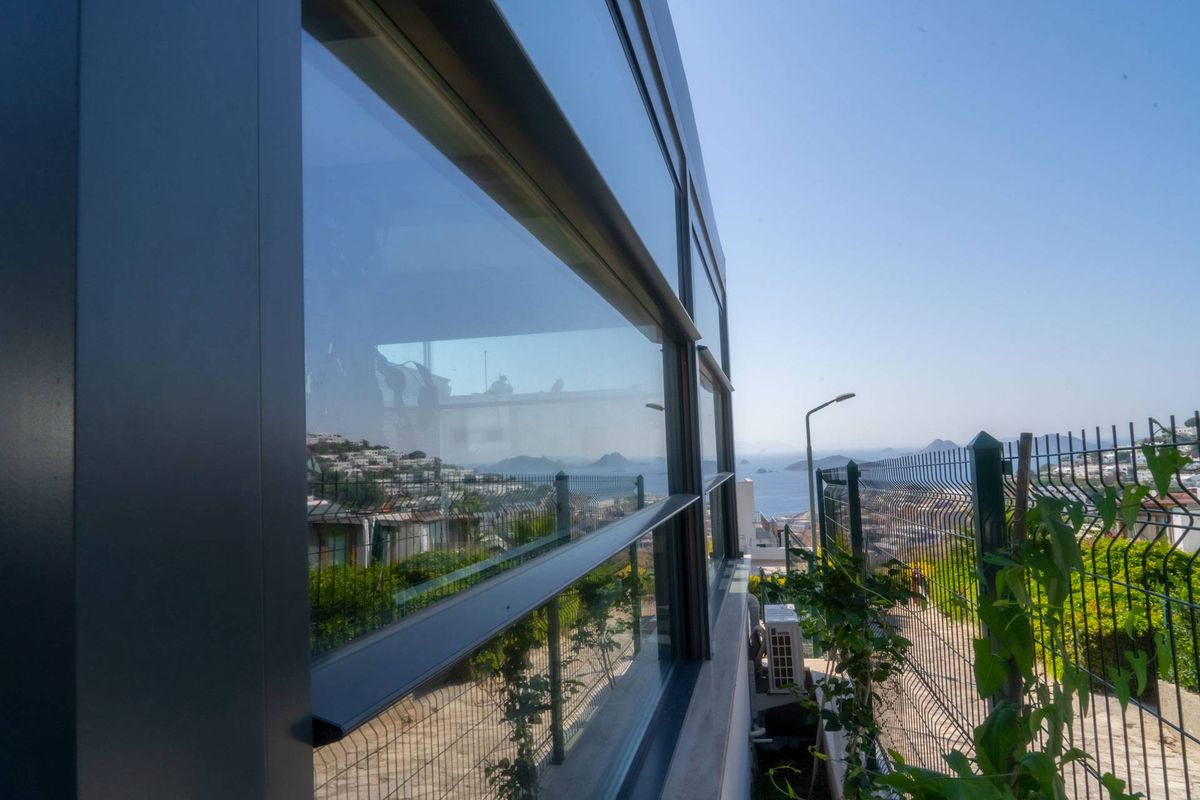

Installed
