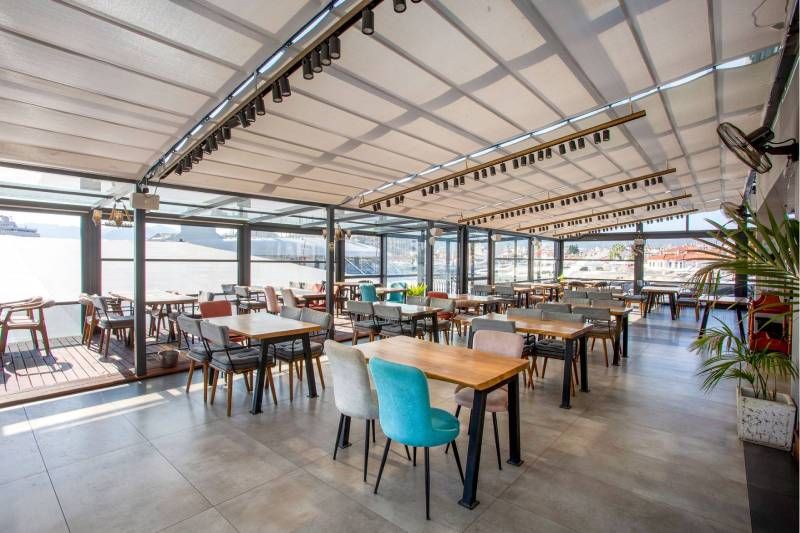

View systemUnder-Roof Shading System
Ceiling Curtain
The second layer of light control, beneath glass and bioclimatic roofs.
Overview
The Ceiling Curtain System is designed for bioclimatic aluminium and glass roof systems, providing versatile shading solutions with Serge Ferrari, Screen and Blackout fabrics. This system is perfect for controlling light and enhancing comfort in a wide range of environments.
Features & benefits
What it does differently.
Fabric Options
Compatible with Serge Ferrari, Screen and Blackout fabrics for different levels of light control.
Remote Control
Motorised system with a CE-certified remote control.
Maximum Width
Supports up to 300 cm in width.
High-Quality Materials
6060 HYDR Norway-origin thermal aluminium profiles.
Smooth Operation
Horizontal movement facilitated by a 10 mm timing belt.
Weather Resistance
Designed to withstand all seasonal conditions.
Durability
Electrostatic powder coating for long-lasting protection.
Technical specification
The numbers.
Dimensions are the maximum for a single module. Larger openings are delivered as coupled modules — tell us the span and we will draw the split.
Request this system| Fabric bottom profile | 40 × 20 mm, 6060 HYDR Norway-origin thermal aluminium |
|---|---|
| Aluminium rail profile | 20 × 30 mm, 6060 HYDR Norway-origin thermal aluminium |
| Movement mechanism | 10 mm timing belt for smooth horizontal movement |
| Finish | Electrostatic powder coating |
| Compatibility | Integrates with bioclimatic aluminium and glass roof systems |
| Warranty | 2 years |

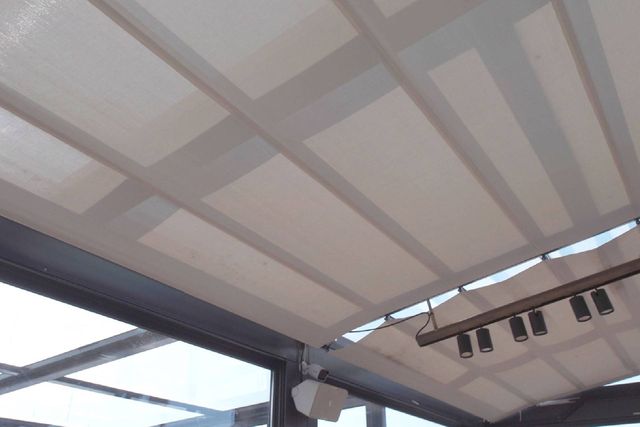

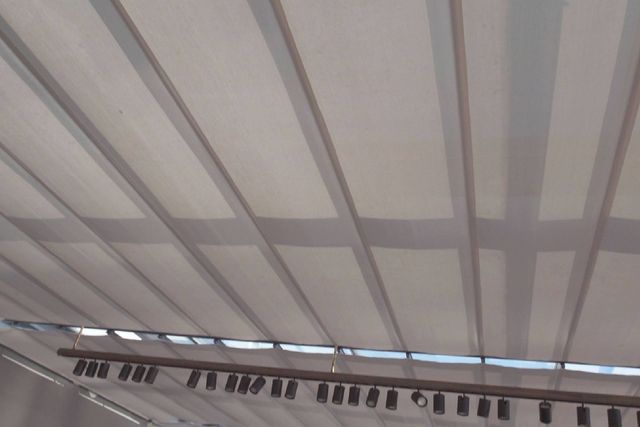

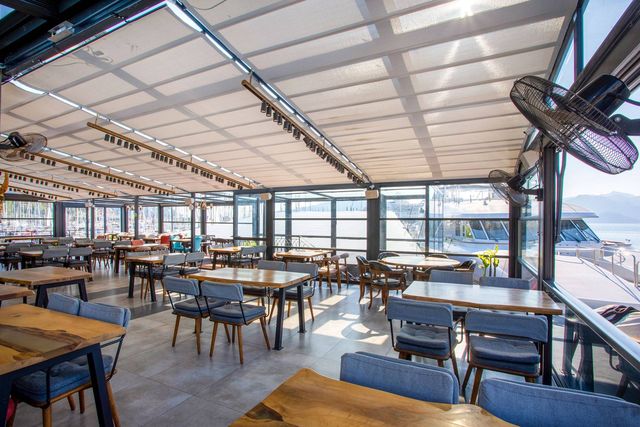

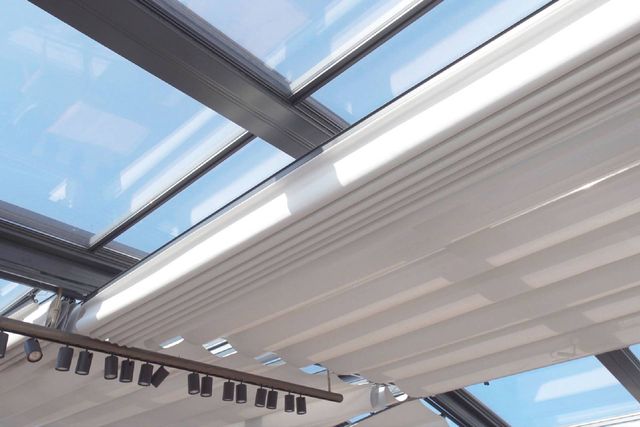

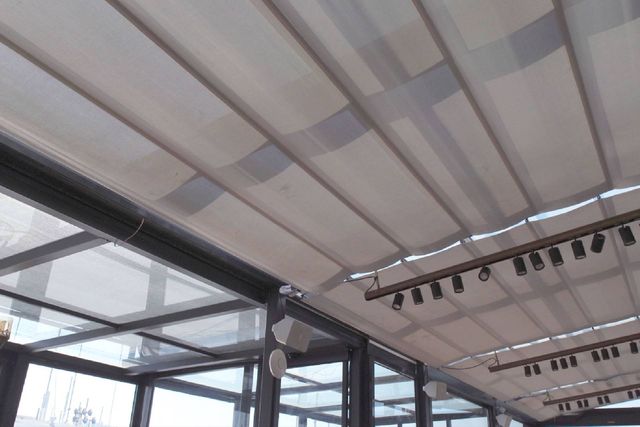

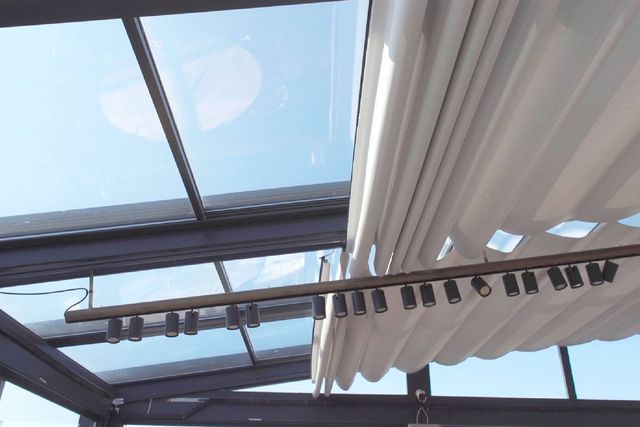

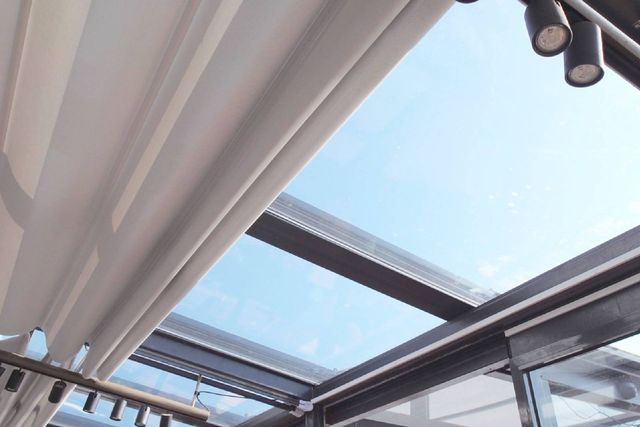

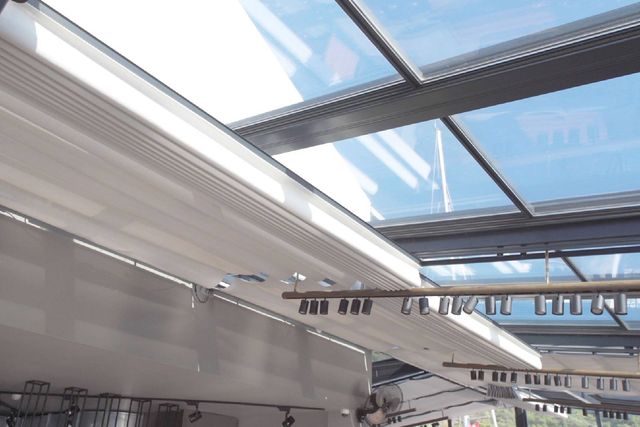

Installed
Ceiling Curtain in place.
